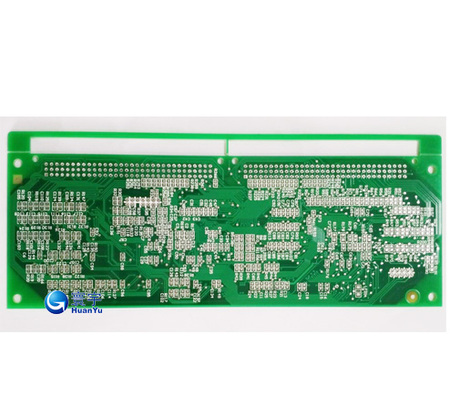

双面无铅线路板

双面无铅线路板
Detail

ItemCapability

Number of Layers2 layer
Material FR4
PCB Thickness1.6mm
Copper Thickness1/1 OZ
Max Finish size580X610mm
Min. Hole sizeMin: 0.2mm and max 6.5mm
Finishing LFHAL
SolderMaskGreen
PeelableMaskThickness≥ 0.3mm
Outline profile CNC Routing. V-CUT.
ToleranceOutline: ± 0.1mm/NPTH: ± 0.05mm/PTH/Hole position: ± 0.075mm/V-CUT: ± 0.1mm
Min Registration between layers± 3mil(± 0.076mm)
Twist and BowFollow IPC-A-600G Spec: 0.7%{max}
TestingImpedance testing Open/short testing/Universal testing/Flying-prob
